Product Parameters
Main technical parameters
Product Name |
5KV/2A/10KW二极溅射镀膜电源 WT10-5K
|
Product Number |
WT10
|
Product Brand | Yochain |
Power supply type | Fully CNC intelligent power supply |
Input Voltage |
AC380V±10%
|
Output Power |
10KW
|
Output Current |
0~ -2A
|
Output Voltage |
0~ -5KV
|
Output Method | Customizable constant voltage, constant current, constant power |
Adjustment Accuracy | ≤1% |
Efficiency | ≥90% |
Power Factor | cosΦ≥0.9 |
Power Switch | DB9pin interface |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature |
-35～+45℃
|
Humidity of use environment | ≤85% |
Cooling Method |
风冷
|
Overall Dimensions | 480*135*380（mm ） |
安装尺寸 | 460*70（mm）3U600mm机柜式安装 |
Note | 出厂默认为模拟接口 输出电压分正或负电压，出厂默认为负电压
接受其他参数的定制
|
Fault Prompt | Intelligent fault detection and analysis, upper limit fault alarm, multi-level error reporting sequence for parameter setting errors, human operation errors, and internal factors of the power supply. |

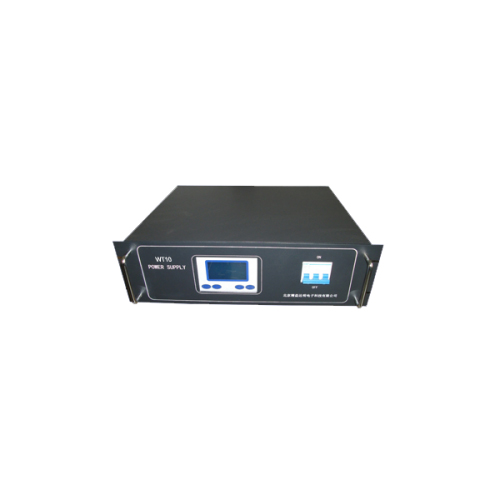

Product Photos
Product Videos
Product Features
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
