Product Parameters
Main technical parameters
Product Name |
3KW磁控管驱动电源（微波头驱动电源、微波电源、磁控管电源、磁控管驱动电源） |
Product Number |
WT5 |
Product Brand | Yochain |
Power supply type | Fully CNC intelligent power supply |
Input Voltage |
AC380V±10% |
Output Power |
5KW |
Output Current |
1A |
Output Voltage |
5KV |
Output Method | Customizable constant voltage, constant current, constant power |
灯丝电压 | 3.3V |
灯丝电流 | 20A |
Adjustment Accuracy | ≤1% |
Efficiency | ≥90% |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
显示内容 | 工作状态，输出电压，输出电流，设定值 |
输出保护 | 输出过压，输出过流，输出失调 |
输入保护 | 输入过压，输入欠压，输入过流，缺相 |
安全保护 | 接地保护，漏电保护，外控保护,防雷保护，过热 |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature | 0～35℃ |
Humidity of use environment | ≤85% |
Cooling Method |
风冷 |
Overall Dimensions |
400*95*370（mm ） |
安装尺寸 |
460*60（mm） |
匹配磁控管 | 驱动3KW磁控管，如2M285磁控管 |
Fault Prompt | Intelligent fault detection and analysis, upper limit fault alarm, multi-level error reporting sequence for parameter setting errors, human operation errors, and internal factors of the power supply. |

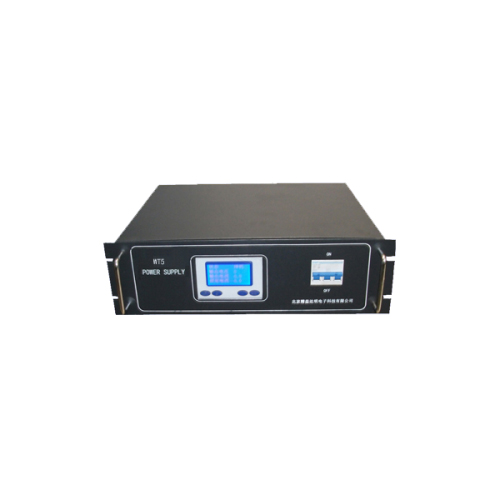

Product Photos
Product Videos
Product Features
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
启辉容易，工作效率高，稳定可靠
具备外部控制系统实现（模拟）信号采集，外部调节，工作.待机状态切换。（数字）RS485通讯接口
