Product Parameters
Main technical parameters
Product Name |
60KW单极直流脉冲电源 |
Product Number |
WT60 |
Product Brand | Yochain |
Power supply type | Fully CNC intelligent power supply |
Input Voltage |
AC380V±10% |
Output Power |
60KW |
Output Current |
2A |
Output Voltage |
3KV~30KV |
输出频率 | 1~255hz |
输出占空比 | 1~99% |
Output Waveform |
方波，梯形波，三角波等 |
输出脉冲宽度 | 1~255uS |
Output Method | Customizable constant voltage, constant current, constant power |
Adjustment Accuracy | ≤1% |
Efficiency | ≥90% |
Power Factor | cosΦ≥0.9 |
Power Switch | DB9pin interface |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature |
-35～+45℃ |
Humidity of use environment | ≤85% |
Cooling Method |
风冷 |
Overall Dimensions |
600*230*600（mm ） |
Note | 出厂默认为模拟接口 输出为单极性，输出正或负极性的波形 接受其他参数的定制 |
Fault Prompt | Intelligent fault detection and analysis, upper limit fault alarm, multi-level error reporting sequence for parameter setting errors, human operation errors, and internal factors of the power supply. |
适用领域 | 用于绝缘测试、污水处理，等离子体，等需要脉冲信号的场合 |

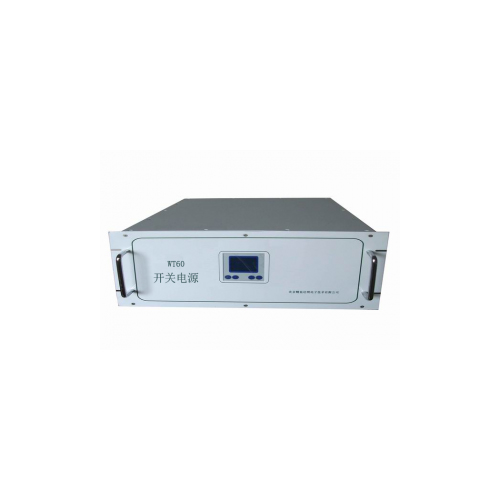

Product Photos
Product Videos
Product Features
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
调节灵活，脉冲频率，脉冲电流，脉冲波形，占空比等参数都能调节。
