Product Parameters
Main technical parameters
Product Name |
任意波形单极性脉冲电源
|
Product Number |
WT2
|
Product Brand | Yochain |
Power supply type | Fully CNC intelligent power supply |
Input Voltage |
AC220V±10%
|
Output Power |
1KW
|
Output Current | 0~100mA(Series parameters) |
Output Voltage |
0~1000V（系列参数）
|
输出频率 | 1~100Hz（可调） |
Output Waveform |
可以输出任意波形，单向正弦波，方波，三角波等 |
Output Method | Customizable constant voltage, constant current, constant power |
Adjustment Accuracy | ≤1% |
Efficiency | ≥90% |
Power Factor | cosΦ≥0.9 |
Power Switch | DB9pin interface |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature |
-35～+45℃
|
Humidity of use environment | ≤85% |
Cooling Method |
风冷
|
Overall Dimensions |
400*95*370（mm ） |

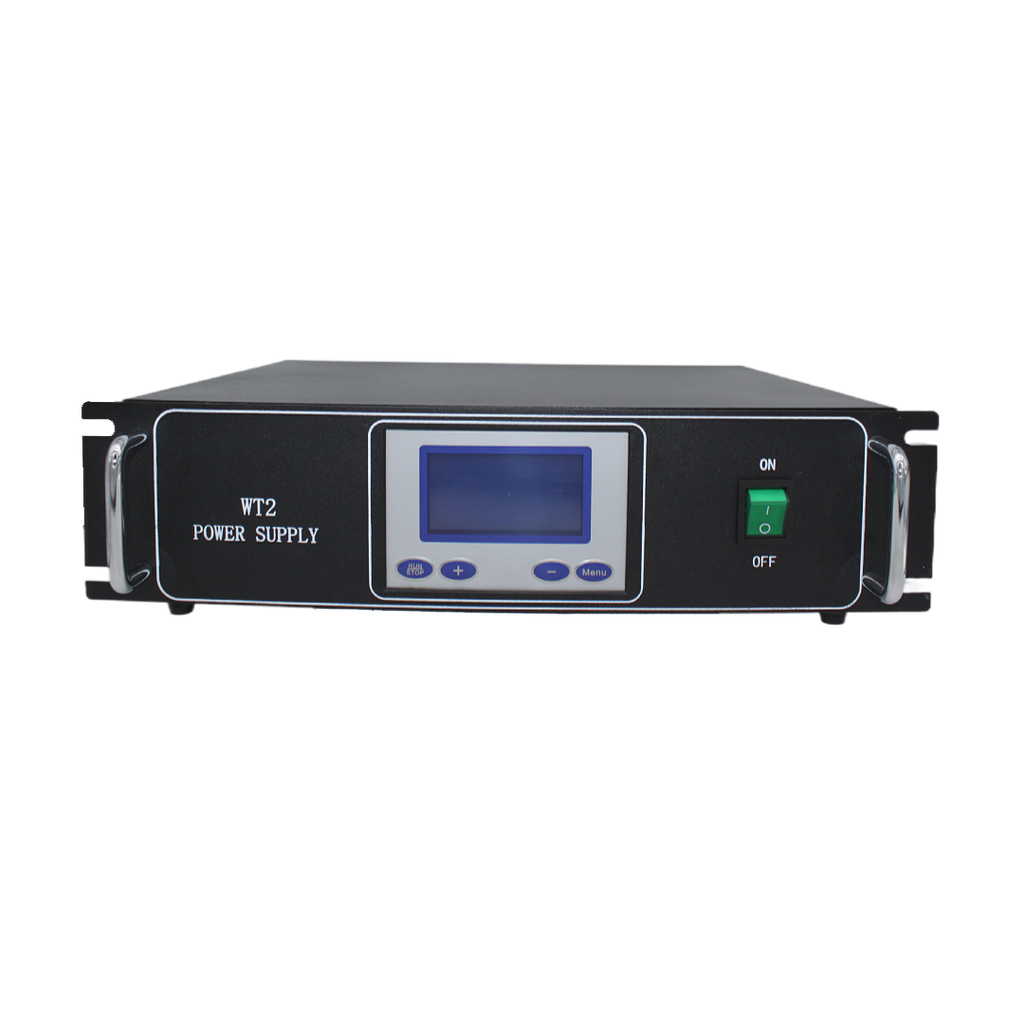

Product Photos
Product Videos
Product Features
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
