Product Parameters
Main technical parameters
Product Name |
3KW中频等离子清洗电源 |
Product Number |
WT3 |
Product Brand | Yochain |
Power supply type | Fully CNC intelligent power supply |
Input Voltage |
AC220V±10% |
Output Power |
3KW |
Output Current |
0.5A |
Output Voltage |
6KV,最高电压10KV |
输出频率 | 25~50Khz |
Output Waveform |
准正弦波 |
Output Method | Customizable constant voltage, constant current, constant power |
Adjustment Accuracy | ≤1% |
Efficiency | ≥90% |
Power Factor | cosΦ≥0.9 |
Power Switch | DB9pin interface |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature | 0～35℃ |
Humidity of use environment | ≤85% |
Cooling Method |
风冷 |
Overall Dimensions |
480*95*370（mm ） |
Note | 出厂默认为模拟接口 |
Fault Prompt | Intelligent fault detection and analysis, upper limit fault alarm, multi-level error reporting sequence for parameter setting errors, human operation errors, and internal factors of the power supply. |
适用领域 | 应用于等离子清洗、刻蚀、等离子镀、等离子涂覆、等离子灰化和表面改性等场合。通过其处理，能够改善材料表面的润湿能力，使多种材料能够进行涂覆、镀等操作，增强粘合力、键合力，同时去除有机污染物、油污或油脂 |

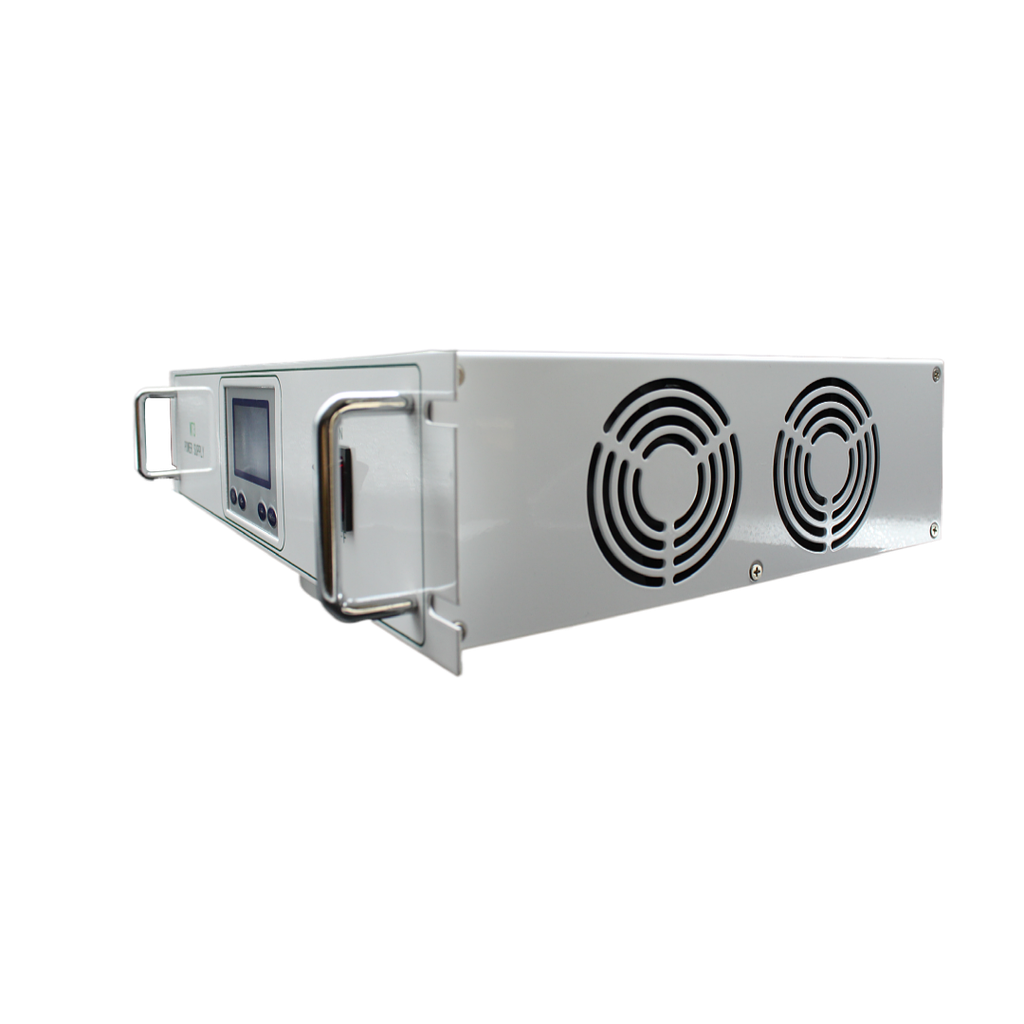

Product Photos
Product Videos
Product Features
能够在大气压下产生稳定的电弧，工作效率高，负载适应范围宽。
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
