Product Parameters
Main technical parameters
Product Name |
WZP5-DDBD-50KV-2KW超高压双介质阻挡层放电电源
|
Product Number |
WZP5-2KW-DBD-50KV
|
Product Brand | Yochain |
Power supply type | Fully CNC intelligent power supply |
Input Voltage |
AC220V±10%
|
Output Power |
2KW
|
Output Current |
>50mA
|
Output Voltage |
>50KV
|
输出频率 | 20KHz~50KHz自动变频 |
Output Waveform |
准正弦波
|
Output Method |
恒功率
|
Adjustment Accuracy | ≤1% |
Efficiency |
≥80%
|
Power Factor | cosΦ≥0.9 |
Power Switch | DB9pin interface |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature | 0～35℃ |
Humidity of use environment | ≤85% |
Cooling Method | 风冷 |
Overall Dimensions | 480*135*380（mm ） |
Note | 出厂默认为模拟接口和485接口 |
Fault Prompt | Intelligent fault detection and analysis, upper limit fault alarm, multi-level error reporting sequence for parameter setting errors, human operation errors, and internal factors of the power supply. |
适用领域 | 应用于等离子清洗、刻蚀、等离子镀、等离子涂覆、等离子灰化和表面改性等场合。通过其处理，能够改善材料表面的润湿能力，使多种材料能够进行涂覆、镀等操作，增强粘合力、键合力，同时去除有机污染物、油污或油脂。
|

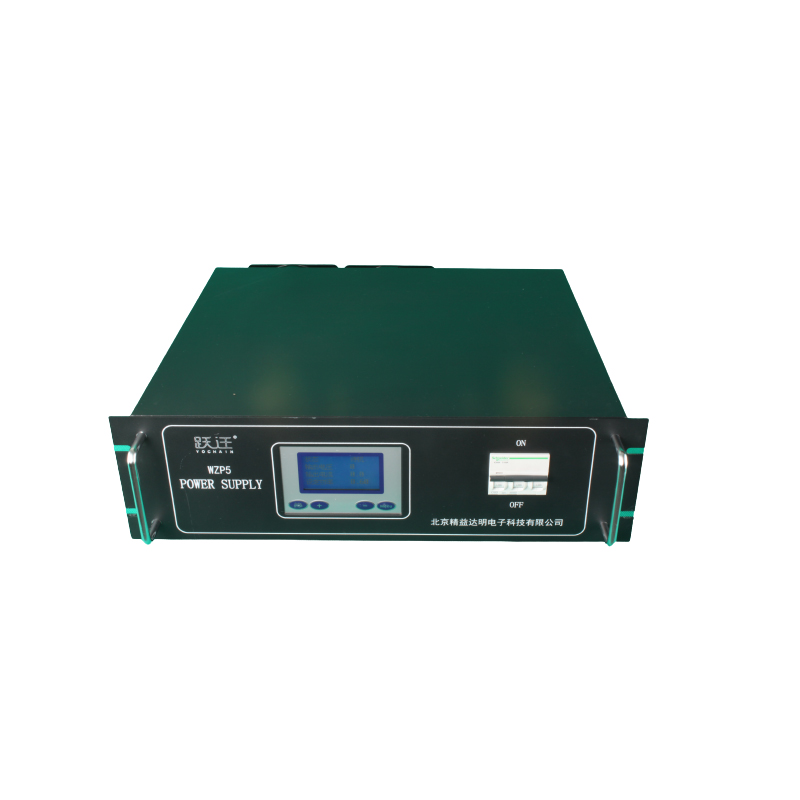

Product Photos
Product Videos
Product Features
能够在大气压下通过阻挡层产生稳定的辉光放电，工作效率高，负载适应范围宽，适应负载电容10~100PF，放电距离可以达到30mm。
The circuit adopts modular design, which is convenient for debugging and maintenance.
