Product Parameters
Main technical parameters
Product Name |
WT2-DBD-1KW中频介质阻挡放电臭氧电源系列 |
Product Number |
WT2-DBD |
Product Brand | Yochain |
Power supply type |
全数控智能电源,单相 |
Input Voltage |
AC220V±10% |
Output Power |
1KW（电压*电流=1000VA） |
Output Current |
34mA~340mA(系列参数) |
Output Voltage |
3KV~30KV(系列参数) |
输出频率 | 1KHz~100Khz(自动变频)（系列参数，单台频率范围在3倍以内） |
Output Waveform |
准正弦波 |
Output Method | Customizable constant voltage, constant current, constant power |
Adjustment Accuracy | ≤1% |
Efficiency | ≥85% |
Power Factor | cosΦ≥0.9 |
Power Switch | DB9pin interface |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature | 0～35℃ |
Humidity of use environment | ≤85% |
Cooling Method |
风冷 |
Overall Dimensions |
400*95*370（mm ） |
Note | 出厂默认为TTL模拟接口和485数字接口，支持MODBUS协议 |
Fault Prompt | 液晶屏幕显示提示号和故障内容，同时声音提示，还输出故障信号给外部两个接口。 |
适用领域 | 应用于臭氧发生，介质阻挡放电，等离子清洗、等离子杀菌，等离子消毒，等离子体生成等试验研究场合。 |

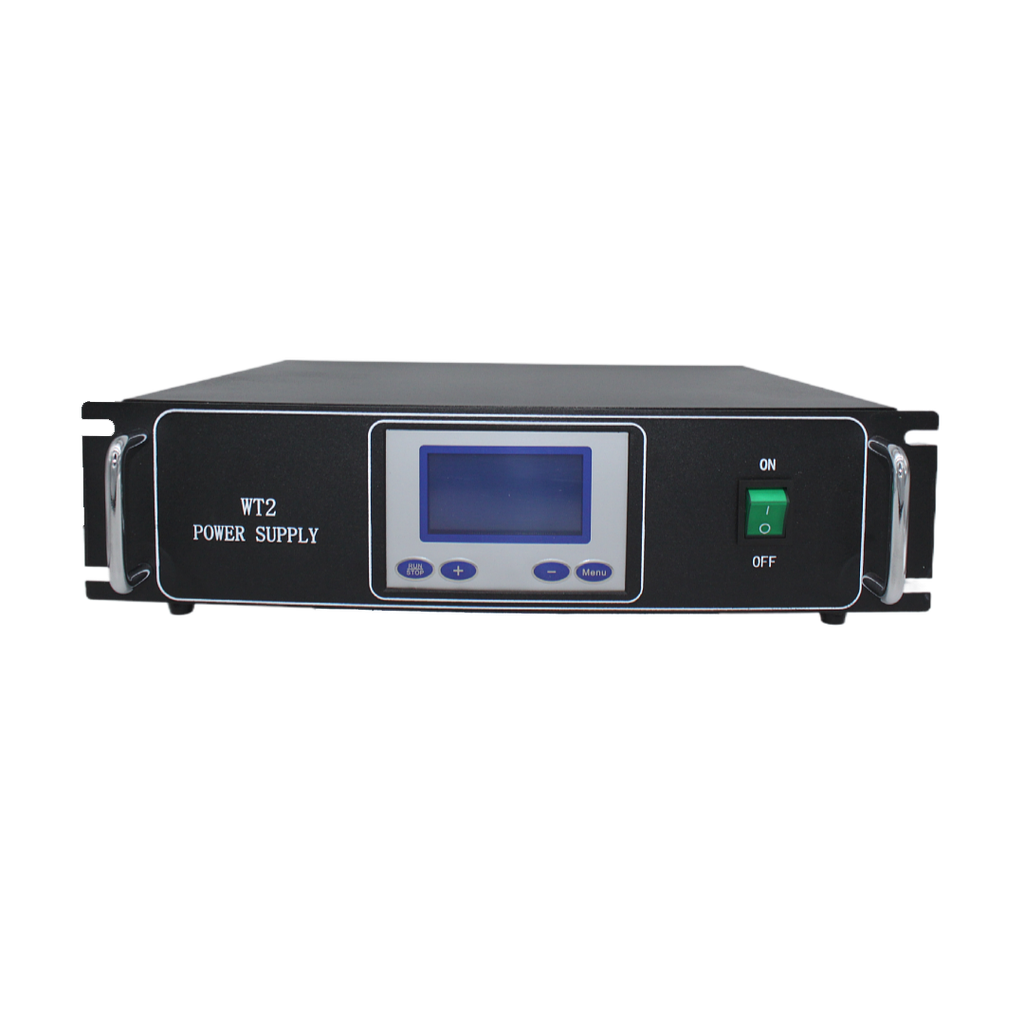

Product Photos
Product Videos
Product Features
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
适用于大气下介质阻挡容性负载，能够在负载大范围变化的情况下产生稳定的放电，能够驱动介质阻挡臭氧发生器，高效率的工作。适应负载电容：5KV(4~40nF),10KV(1~10nF)，30KV(100P~1000PF),最大放电距离：5KV(3mm),10KV(5mm),30KV(15mm)。
