Product Parameters
Main technical parameters
Product Name |
5KW中频真空清洗电源 |
Product Number |
WZP5-600V |
Product Brand | Yochain |
Power supply type | Fully CNC intelligent power supply |
Input Voltage |
AC380V±10% |
Output Power |
5KW |
Output Current |
0~10A |
Output Voltage |
工作电压200~ 600V,空载电压> 800V |
输出频率 | 40Khz |
Output Waveform |
准正弦波 |
Output Method | Customizable constant voltage, constant current, constant power |
Adjustment Accuracy | ≤1% |
Efficiency | ≥90% |
Power Factor | cosΦ≥0.9 |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
显示内容 | 工作状态，输出电压，输出电流，设定值 |
输出保护 | 输出过压，输出过流，输出失调 |
输入保护 | 输入过压，输入欠压，输入过流，缺相 |
安全保护 | 接地保护，漏电保护，外控保护,防雷保护，过热 |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature | 0～35℃ |
Humidity of use environment | ≤80% |
Cooling Method |
风冷 |
Overall Dimensions | 480*135*380（mm ） |
Note | 出厂默认为TTL模拟接口和485数字接口 |
Fault Prompt |
全数控智能电源,有10多种故障检测处理系统，故障具有声音提示和中英文提醒，可以输出故障类型 |

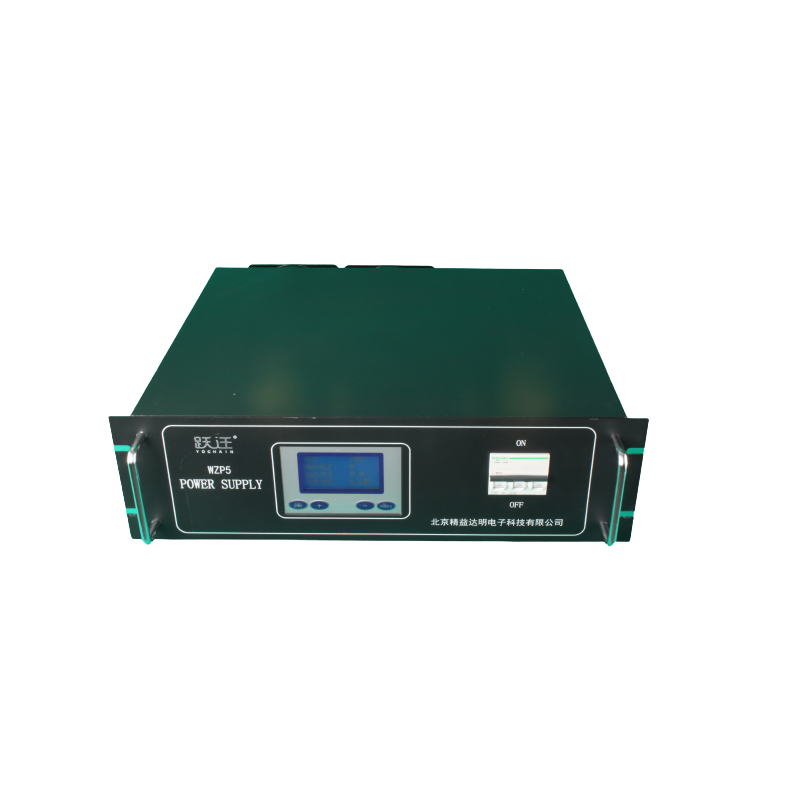

Product Photos
Product Videos
Product Features
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
输出电压偏低，输出电流大，如果用于磁控溅射，适用于真空气压较高，工作电压较低的场合
真空清洗电源，不易产生电弧，负载适应范围宽
