Product Parameters
Main technical parameters
Product Name |
40KW中频真空等离子清洗电源
|
Product Number |
WZP40-600V
|
Product Brand | Yochain |
Power supply type | Fully CNC intelligent power supply |
Input Voltage |
AC380V±10%
|
Output Power |
40KW
|
Output Current |
0~80A
|
Output Voltage |
工作电压200~ 500V,空载电压> 600V
|
输出功率 | 40Khz |
Output Waveform |
准正弦波
|
Output Method | Customizable constant voltage, constant current, constant power |
Adjustment Accuracy | ≤1% |
Efficiency | ≥90% |
Power Factor | cosΦ≥0.9 |
Control Method | Power panel button control Analog signal control: TTL level, can control work stop, output voltage or output current or output power, external open circuit protection (generally used for water flow protection) Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring |
Display Mode | LCD display in both Chinese and English |
显示内容 | 工作状态，输出电压，输出电流，设定值 |
输出保护 | 输出过压，输出过流，输出失调 |
输入保护 | 输入过压，输入欠压，输入过流，缺相 |
安全保护 | 接地保护，漏电保护，外控保护,防雷保护，过热 |
Insulation Class | Class B |
Protection Level | IP20 |
Protection response time | 1uS |
Input pair case resistance | ≥20MΩ |
输出对外壳电阻 | ≥20MΩ |
Input to shell pressure | 2000V/1min |
Input to output withstand voltage | 3500V/1min |
Operating ambient temperature | 0～35℃ |
Humidity of use environment | ≤80% |
Cooling Method | 水冷 |
Overall Dimensions |
480*263*550（mm）
|
安装尺寸 | 460*70（mm）机柜式安装 6U600MM |
Load Characteristics | Resistive load, capacitive load, negative resistive load, non-linear load, allowable load short circuit |
Note | 出厂默认为TTL模拟接口和485接口 |
Fault Prompt |
全数控智能电源,有10多种故障检测处理系统，故障具有声音提示和中英文提醒，可以输出故障类型。
|

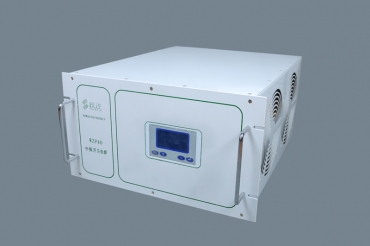

Product Photos
Product Videos
Product Features
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
