Product Parameters
Main technical parameters
Product Name |
WT3_MC双极性纳秒方波脉冲高压电源系列
| |
Product Number | WT3 | |
Product Brand | Yochain | |
Power supply type | Fully CNC intelligent power supply | |
Input Voltage |
AC220V±10%
| |
Output Power |
平均功率1KW（峰值功率20KW）
| |
Output Current |
0-10A（系列参数）
| |
Output Voltage |
0-30KV（系列参数）
| |
输出频率 | 100Hz-10KHz可调 | |
Output Waveform |
可以输出双极性方波高压波形，脉冲宽度1~255uS可调。
| |
Output Method |
脉冲宽度可调，脉冲频率可调，输出电压可调，输出电流可调。
| |
Adjustment Accuracy | ≤1% | |
Efficiency |
≥80%
| |
Power Factor | cosΦ≥0.9 | |
Power Switch | DB9pin interface | |
Control Method | Power panel button control
模拟信号控制：TTL电平，可以控制工作停止，输出电压或输出电流或输出功率，外部保护
Digital interface control: 485 communication. 232 interface can also be customized IoT WIFI connection, remote network monitoring | |
Display Mode | LCD display in both Chinese and English | |
Insulation Class | Class B | |
Protection Level | IP20 | |
Protection response time | 1uS | |
Input pair case resistance | ≥20MΩ | |
输出对外壳电阻 | ≥20MΩ | |
Input to shell pressure | 2000V/1min | |
Input to output withstand voltage | 3500V/1min | |
Operating ambient temperature |
-35～+45℃
| |
Humidity of use environment | ≤85% | |
Cooling Method |
风冷
| |
Overall Dimensions |
480*95*370（mm ）
| |
Note | 出厂默认为模拟接口和485数字接口 输出为双极性纳秒方波脉冲高压，输出正负对称的波形，上升沿<1uS。 接受其他参数的定制。 | |
Fault Prompt | Intelligent fault detection and analysis, upper limit fault alarm, multi-level error reporting sequence for parameter setting errors, human operation errors, and internal factors of the power supply. | |
适用领域 |
|

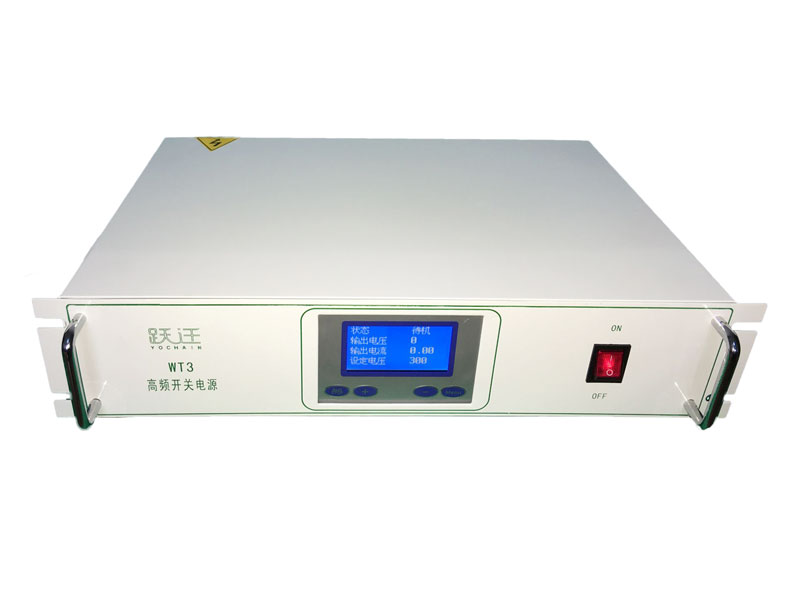

Product Photos
Product Videos
Product Features
Small size, light weight, simple structure, easy operation, stable and reliable.
The circuit adopts modular design, which is convenient for debugging and maintenance.
电源的保护设计，使电源能够工作于各种复杂的环境，中英文提示功能，使问题清晰准确。
